Van De Graaff Generator Manufacturer,Supplier and Exporter in Africa
Product Code : DA-E-11343
Quick Answer: The Van De Graaff Generator has a dome on a pillar and a rubber belt driven by an electric motor concealed in the metal base. It runs from 220 to 240V AC mains and gives a maximum spark length of approximately 50 mm.
Last updated: October 2026
Key Features
- Rubber belt driven by an electric motor in the metal base
- Charge produced by friction between the belt and two rollers
- Metal gauze transfers charge from the belt to the 220 mm dome
- 4 mm socket in the base for a conducting sphere or wire connection
- Maximum spark length approximately 50 mm
- Dust cover provided
Technical Specifications
| Specification | Value |
|---|---|
| Operating voltage | 220 to 240V AC (with 5A cartridge fuse) |
| Dome diameter | 220 mm |
| Dome capacitance | Approx. 15 pF |
| Total height | 500 mm |
| Maximum spark length | Approx. 50 mm |
| Conducting sphere diameter | 100 mm |
| Maximum (intermittent) current | Approx. 6 µA |
| Base (max) dimensions | 218 x 182 x 93 mm |
About This Product
Static charge is produced by friction between the moving rubber belt and two rollers, then removed from the belt by a metal gauze and stored in the dome. The 4 mm socket in the base can either support a conducting sphere on a cranked rod or take a wire connection to a separate conducting sphere. When the generator is not in use, the cover provided keeps it free from dust.
Frequently Asked Questions
Q1. How long a spark can the Van De Graaff Generator produce?
The maximum spark length is approximately 50 mm.
Q2. What is the 4 mm socket in the base used for?
It can support a conducting sphere fitted with a cranked rod support, or take a wire connection to a separate conducting sphere.
Q3. What power supply does it need?
The motor is powered from the mains. The operating voltage is 220 to 240V AC, with a 5A cartridge fuse.

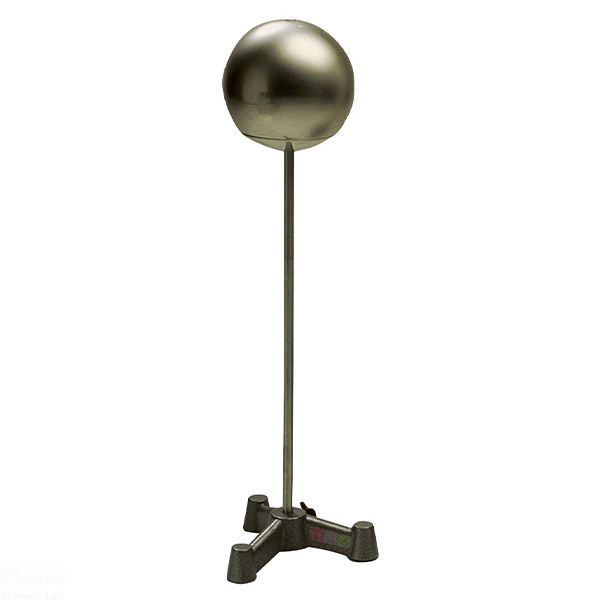

Related: Electrostatics range, Discharge Sphere, Van De Graaff Accessories Kit, Van De Graaff Generator Premium.
